ALPHA CENTRE
Models       :  V7L            :     V9L            : V11L             :V15L
- Cast iron is tempered for stress relief to ensure structural stability
   without deformation.
- C3 class ballscews ensure the highest accuracy and durability.
- Pre tension on all axes minimizes thermal distortion.

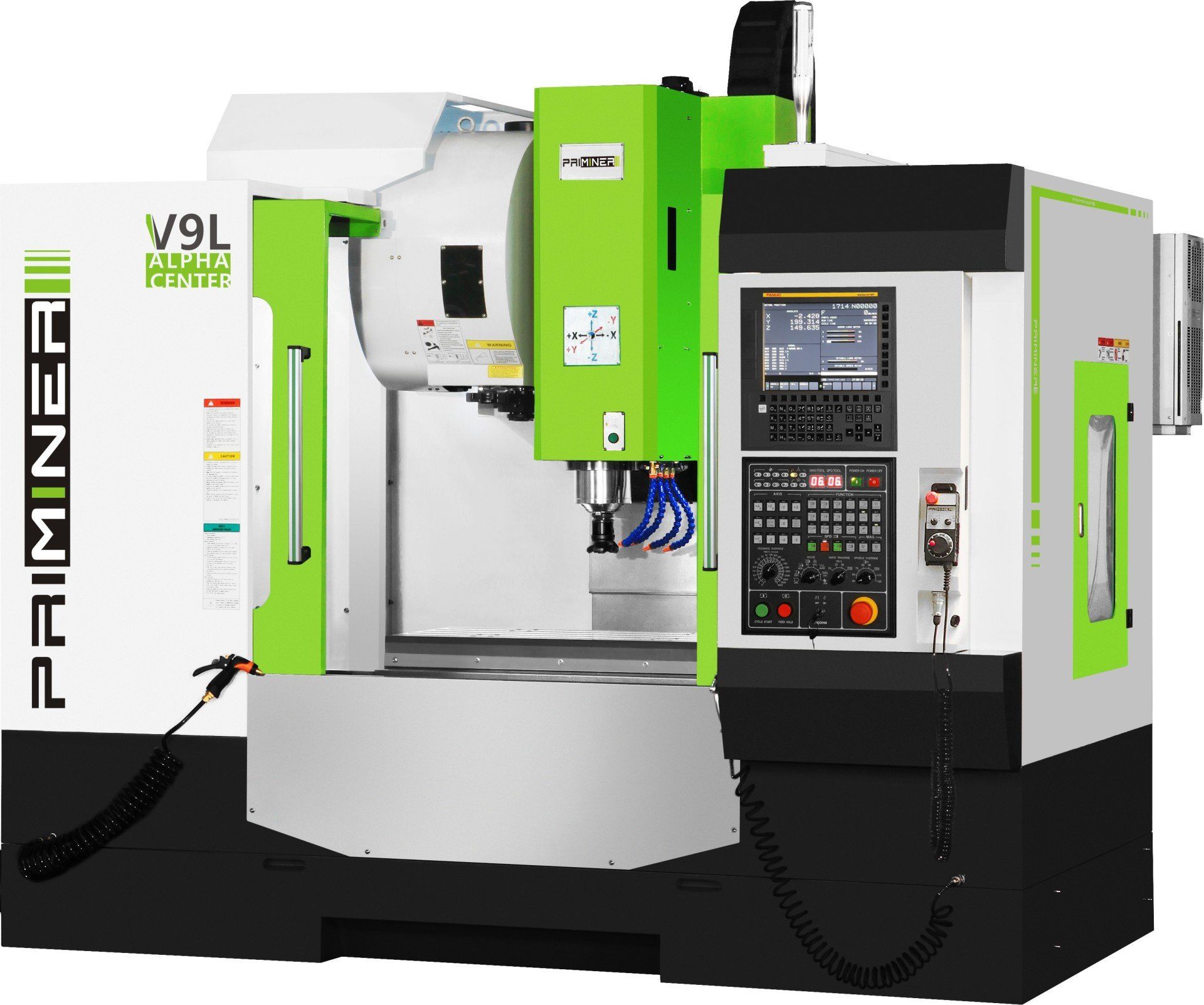

ALPHA CENTRE V9L
Table
Table Size 1000×500MM
T slot (width*number*distance) 18×5×100MM
Max.load 650KG
Travel
X/Y/Z travel 900/550/600MM
Spindle nose to table 80-680MM
Spindle center to column 585MM
Spindle
Spindle taper and diameter BT40/150MM
Spindle speed 10000RPM
Spindle motor power 11/15KW
Feed
Rapid feed 36M/MIN
cutting speed 1-12000MM/MIN
X/Y/Z motor power and torque 2.5KW/22NM
Arm Tool changer
No. of tools 24
Max.tool length 300MM
max. diameter 78MM/120MM(next release)
Max. tool weight 8KG
Tool changing time(Cam box) 1.6 SEC.
Accuracy
Positioning accuracy ±0.003/300
Positioning repeatability 0.003
General
Coolant tank capacity 130L
Coolant flow rate 40L/min
Air pressure 0.6Mpa
Airflow rate 130L/min
Power requirement 23KW
Dimension 2750×2310×2900MM
Weight 6000KG
