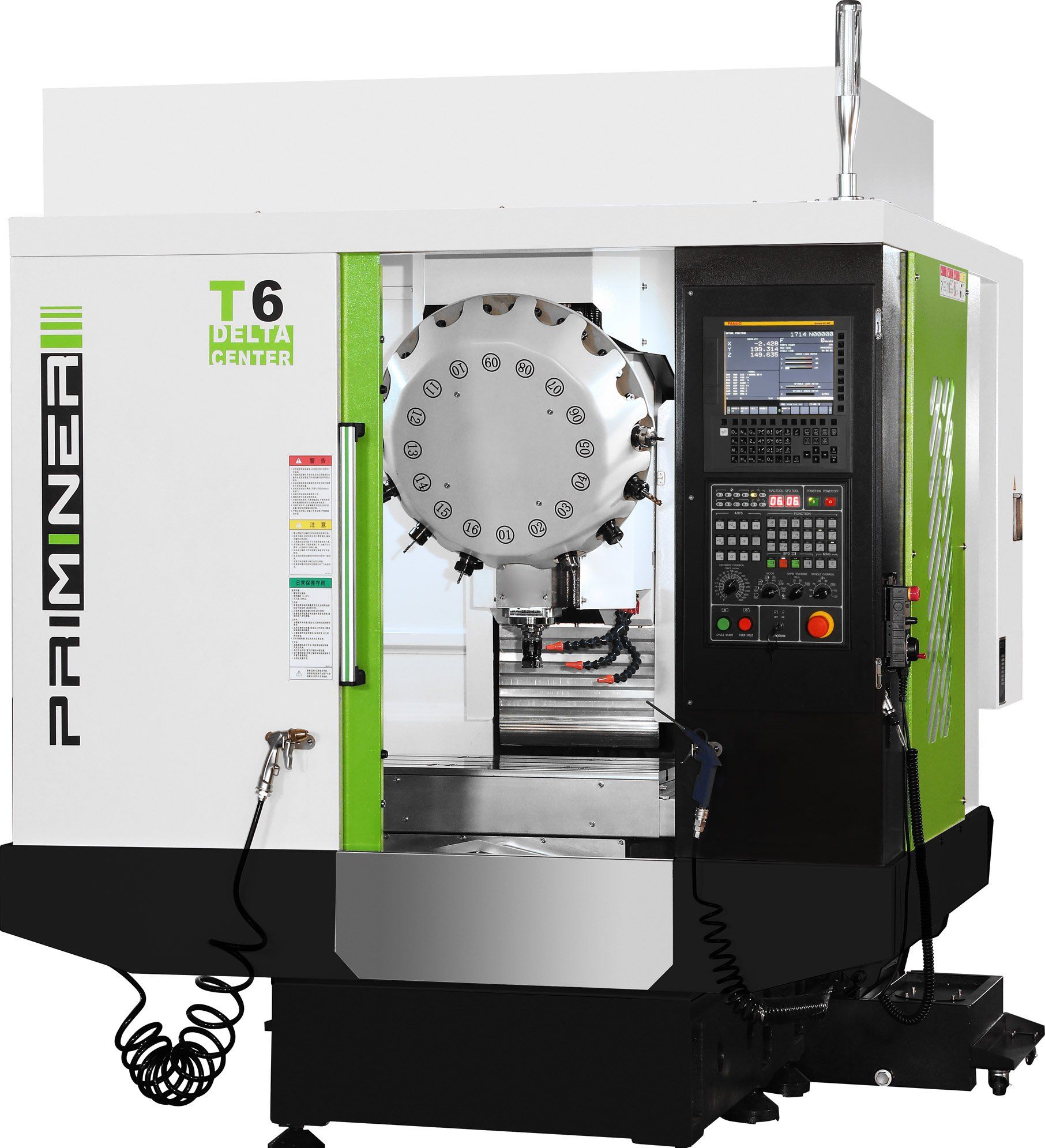

DELTA CENTRE T6
Models : T6 : T7
- Cast iron is tempered for stress relief to ensure structural stability
without deformation.
- C3 class ball screws ensure the highest accuracy and durability.
- Pre tension on all axes minimizes thermal distortion.
DELTA CENTRE T6
Technical specifications T6
Table
Table mm 700 × 420
T-slot (width x number x distance) mm 14 x 3 x 125
Max. load kg 350
Travel
X / Y / Z Travel mm 600 / 400 / 300
Spindle nose to table distance mm 150 - 450
Spindle center to column mm 465
Spindle
Spindle taper BT 30
Spindel servo motor kW 4.8 / 19 Siemens / 3.7 / 5.5 Fanuc
Spindle speed min-1 12.000
Feed
Rapid feed m/min 48
Cutting feed mm/min 1-12.000
Tool changer
Number of tools pcs. : 21
Max. tool length mm : 250
Max. tool diameter mm : 60 (80)
Max. tool weight kg 3
Accuracy
VDI 3441 (Full travel) mm
Positioning accuracy 0.010;
Positioning repeatability 0.006
Weight kg 3000
